APA NBR Rubber Pneumatic Cylinder Piston Rod Double O Ring Gasket Seal
| 起源の場所 | チアン |
|---|---|
| ブランド名 | DZK |
| 証明 | ROHS |
| モデル番号 | アパ |
| 最小注文数量 | 100pcs |
| 価格 | negotiate |
| パッケージの詳細 | 100pcs/bag |
| 受渡し時間 | 7〜10日 |
| 支払条件 | L/C、T/T |
| 供給の能力 | 1000000pcs/月 |
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 製品名 | APAシリンダーシール | 圧力評価 | 0-1.6Mpa |
|---|---|---|---|
| 温度範囲 | -20°C〜 +80°C | 材料 | NBR(ニトリルゴム) |
| 表面の速度 | ≤1m/s | 硬度 | ショア硬度 (SHA) 70° |
| 色 | 黒 (標準) | 中くらい | オイル潤滑エア、ドライエア、オイルフリーエア（組立時に初期潤滑が必要） |
製品の説明
APA NBR Rubber Pneumatic Cylinder Piston Rod Double O-Ring Seal | Redundant Sealing Reliability
Product Overview
The APA Pneumatic Cylinder Piston Rod Double O-Ring Seal features a precision-engineered dual-sealing design that provides an extra layer of protection against air leakage in critical pneumatic applications. Manufactured from high-quality NBR rubber, this seal delivers reliable performance, excellent compression recovery, and long-term durability in demanding industrial environments.
Key Features & Benefits
- Dual-Sealing Security - Two independent sealing points ensure zero leakage even if one seal is compromised
- Premium NBR Material - Excellent resistance to air, water, and lubricants with superior elasticity
- Easy Installation - Standard O-ring groove design simplifies replacement and maintenance
- Cost-Effective Solution - Provides redundant sealing at a competitive price point
- Wide Compatibility - Fits standard pneumatic cylinders from major manufacturers
Technical Specifications
| Parameter | Standard Specification |
|---|---|
| Material | NBR (Nitrile Rubber) |
| Temperature Range | -20°C to +80°C |
| Pressure Rating | 0-1.6MPa |
| Color | Black (Standard) |
Applications
- Industrial Automation - Pneumatic cylinders in assembly lines
- Packaging Equipment - Sealing systems for wrapping and filling machines
- Automotive Manufacturing - Pneumatic controls and actuators
- Food Processing - Equipment using food-grade air systems
- Material Handling - Conveyor systems and transfer equipment
Why Choose APA Double O-Ring Seals?
Enhanced Reliability
- Redundant Sealing Design: Two independent sealing lips provide backup protection
- Consistent Performance: Maintains sealing integrity through millions of cycles
- Contamination Resistance: Effective barrier against dust and particulate ingress
Material Excellence
- Optimized NBR Compound: Specially formulated for pneumatic applications
- Excellent Compression Set: Maintains sealing force over extended periods
- Aging Resistance: Withstands oxidation and environmental degradation
Quality Assurance
- 100% dimensional verification
- Material certification available
- Batch consistency testing
- Performance validation in simulated conditions

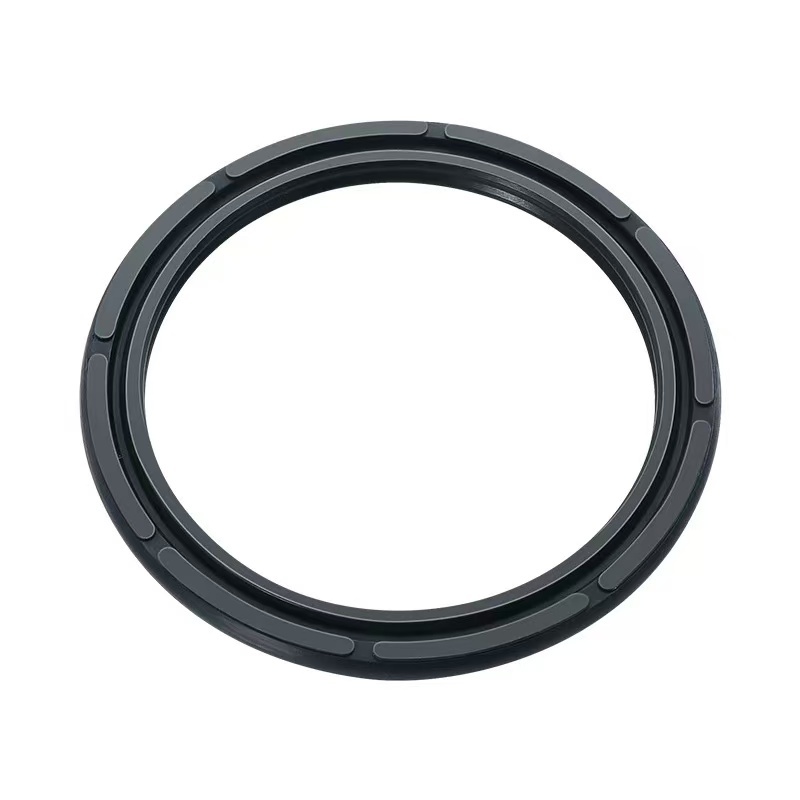

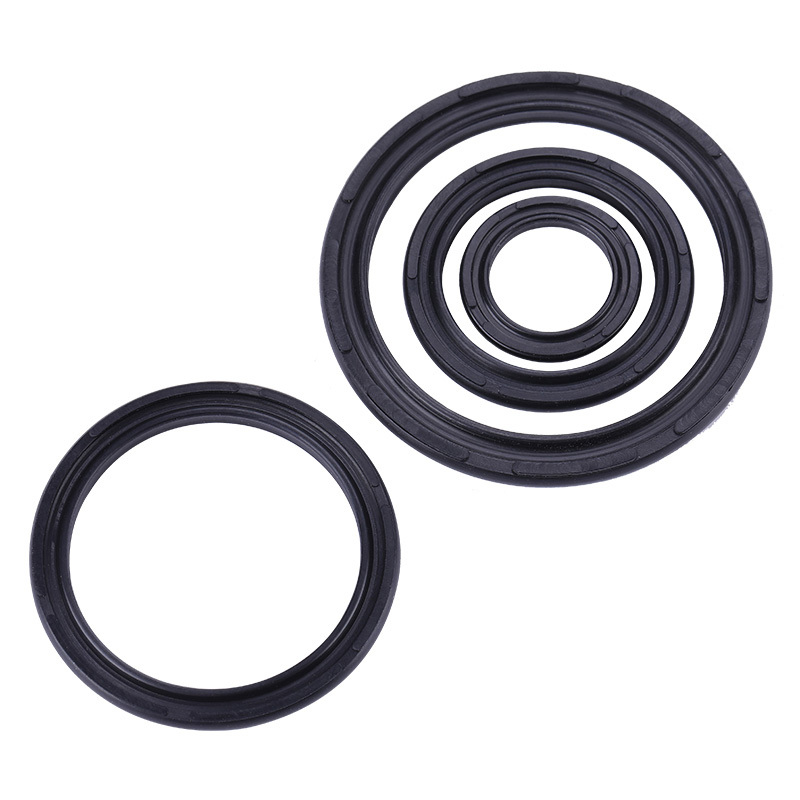

Product Actual Shooting
