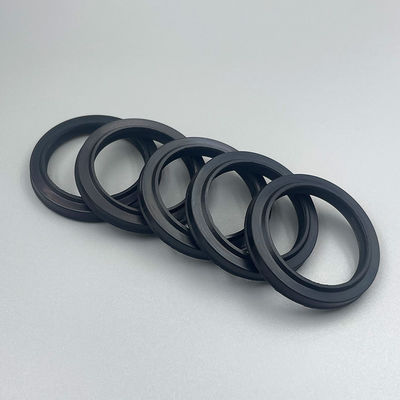

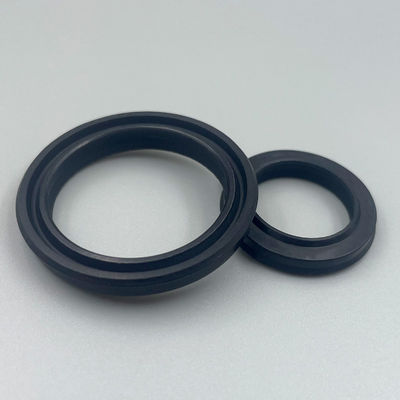

Rubber EM Yadea Cylinder Thin Dustproof Ring EM6/8/10/12/16/20/25 Sealing Ring NBR
| 起源の場所 | チアン |
|---|---|
| ブランド名 | DZK |
| 証明 | ROHS |
| モデル番号 | EM6/8/10/12/16/20/25 |
| 最小注文数量 | 100pcs |
| 価格 | negotiate |
| パッケージの詳細 | 100pcs/bag |
| 受渡し時間 | 7〜10日 |
| 支払条件 | L/C、T/T |
| 供給の能力 | 1000000pcs/月 |
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 名前 | ゴム製のヤデアシリンダー薄い防塵リング | 適用されるモデル | EM6/EM8/EM10/EM12/EM16/EM20/EM25 |
|---|---|---|---|
| 材料 | NBR （ニトリルのブタジエン ゴム） | 温度範囲 | -30℃〜 +100℃ |
| 色 | 黒 | 圧力範囲 | 0-1MPA |
| アプリケーションの範囲 | Yade Gas Cylinder | 涙抵抗 | 良い |
製品の説明
Yadea Cylinder Thin Dustproof Ring EM Series | NBR Material | EM6/8/10/12/16/20/25
Product Overview
Thin dust seal specifically designed for Yadegar cylinder, made of high-quality NBR material, providing reliable dust sealing protection. The ultra-thin design saves installation space and effectively prevents dust and impurities from entering the cylinder interior, extending the service life of the cylinder.
Main Features
- Accurate Matching - Designed specifically for Yadea Pneumatic Cylinders
- High-quality NBR material - Good wear resistance and elasticity
- Ultra-thin design - Saves installation space, suitable for compact cylinders
- Effective dustproofing - Prevents contaminants from entering the cylinder interior
- Easy to install - Simple press-fit installation design
- Economical and durable - High cost-performance ratio, long service life
Technical Specifications
| Parameter | Standard Range |
|---|---|
| Applicable Models | EM6/EM8/EM10/EM12/EM16/EM20/EM25 |
| Material | NBR (Nitrile Butadiene Rubber) |
| Temperature range | -30℃ ~ +100℃ |
| Color | Black |
Model Correspondence Table
| ITEM | ID | OD | t/h | D1 | H | B |
|---|---|---|---|---|---|---|
| EM-06 | 6 | 9.0 | 2.6/2.8 | 7.2 | 2.9 | 0.9 |
| EM-08 | 8 | 11.5 | 3.0/3.2 | 9.3 | 3.2 | 1.0 |
| EM-10 | 10 | 14.0 | 3.5/3.7 | 11.4 | 3.7 | 1.0 |
| EM-12 | 12 | 18.5 | 3.5/3.7 | 13.3 | 3.7 | 1.0 |
| EM-16 | 16 | 22.5 | 3.5/4.0 | 18.0 | 3.7 | 1.2 |
| EM-20 | 20 | 27.0 | 4.0/4.6 | 21.8 | 4.2 | 1.2 |
| EM-25 | 25 | 32.0 | 4.0/4.6 | 27.0 | 4.2 | 1.2 |
Application Fields
- Yade Air Cylinder Accessories - Designed specifically for EM series cylinders
- Automation Equipment - Various pneumatic automation devices
- Mechanical Equipment - Pneumatic systems requiring dust protection
- Electronic Equipment - Pneumatic components in clean environments
Quality Assurance
- Strict Quality Control System
- 100% Dimensional Inspection
- Material Performance Testing
- Batch Consistency Guarantee
