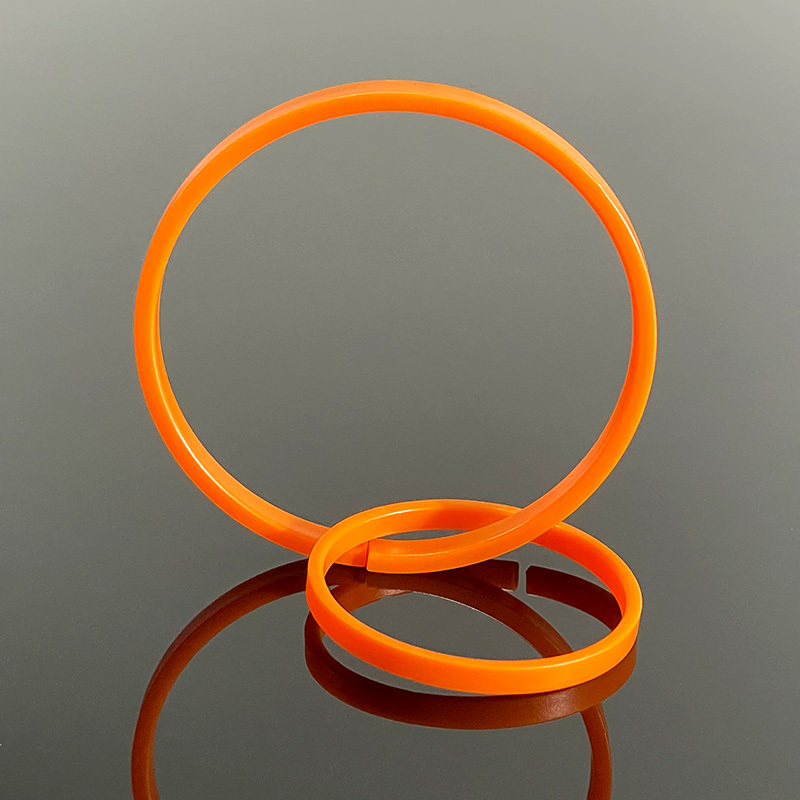

Piston Cylinder Wear-resistant Sealing Ring Support Guide Ring
| 起源の場所 | チアン |
|---|---|
| ブランド名 | DZK |
| 証明 | ROHS |
| モデル番号 | ピストンシリンダー耐摩耗性シーリングリング |
| 最小注文数量 | 100pcs |
| 価格 | negotiate |
| パッケージの詳細 | 100pcs/bag |
| 受渡し時間 | 7〜10日 |
| 支払条件 | L/C、T/T |
| 供給の能力 | 1000000pcs/月 |
無料のサンプルとクーポンを私に連絡してください.
ワットサップ:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 製品名 | ピストンシリンダー耐摩耗性シーリングリング | 温度範囲 | -30°Cへの+100°C |
|---|---|---|---|
| 圧力評価 | 0-2Mpa | 標準材料 | 高い硬度POM |
| 製品の色 | オレンジ | 製品の表面 | 滑らかで 突起がない |
| アプリケーションフィールド | 標準シリンダー | パフォーマンス | 腐食耐性、高シール、耐性耐性低温耐性耐性 |
あなたはあなたが必要とする製品にチェックを入れて、メッセージボードで私たちと通信することができます。
製品の説明
Piston Cylinder Wear-resistant Sealing Ring | Extended Service Life & Reliable Performance
Product Overview
The Piston Cylinder Wear-resistant Sealing Ring is a high-performance sealing solution engineered for demanding hydraulic and pneumatic applications. Utilizing advanced materials and precision manufacturing, this seal delivers exceptional durability, reliable sealing performance, and extended service life even under harsh operating conditions.
Core Features and Advantages
- Excellent Wear Resistance - Advanced POM material can withstand abrasive environments
- Low Friction Design - Optimized geometric structure reduces heat generation and energy consumption
- Superior Sealing Performance - Maintains effective sealing under high pressure and dynamic conditions
- Wide Pressure Range - Reliable operation between 0-2Mpa
Technical Specifications
| Parameter | Standard Range |
|---|---|
| Temperature Range | -30°C to +100°C |
| Pressure Rating | 0-2Mpa |
| Standard Materials | High hardness POM |
| Color | Orange |
Applications

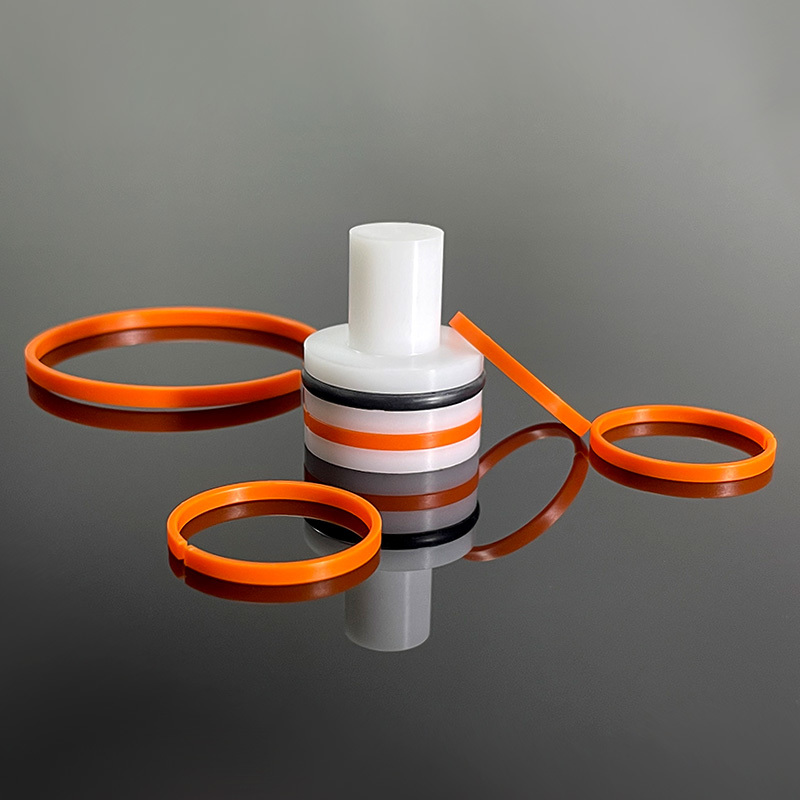

This guide ring is a component used in cylinders to support the movement of pistons. It prevents direct contact and friction between the piston and the cylinder body during motion, thereby protecting both the cylinder body and the piston from damage. It is easy to install, can be quickly fastened without auxiliary tools, can compensate for boundary forces, has good wear resistance and a long service life, can absorb lateral loads, and due to the centering effect of the wear-resistant ring, can increase the extrusion gap of the seal.
- Hydraulic Cylinders - Excavators, presses, injection molding machines
- Pneumatic Systems - Industrial automation, robotics
- Heavy Machinery - Construction equipment, agricultural machinery
- Industrial Equipment - Pumps, compressors, valves
- Mobile Equipment - Cranes, forklifts, mining equipment
